TACHYON 1024 µCAMERA | High-speed MWIR camera for industrial process control
Capture ultra-fast thermal dynamics in real industrial processes
TACHYON 16K+ enables high-speed thermal monitoring for demanding industrial environments, allowing precise process control, defect detection and real-time analysis.
- High sensitivity for precise thermal analysis
- Uncooled MWIR technology.
- Built for advanced industrial applications.
- Flexible integration for monitoring and control.
- Reliable performance in demanding environments.
128×128 pixel resolution
MWIR spectral range
(1–5 µm)
High-speed imaging up to 4000 fps.
Flexible optical configurations
APPLICATIONS
Built for high-speed industrial monitoring and advanced process control
TACHYON 16K+ supports demanding applications where speed and precision are critical, enabling real-time decision-making and process optimization.
Additive manufacturing
Process monitoring
Quality inspection
Machine vision
Spectroscopy
Gas and flame detection
REAL-WORLD MONITORING EXAMPLES
See how fast thermal events are captured
and analyzed in real time
From additive manufacturing to welding and process monitoring, TACHYON 16K+ reveals thermal behavior that conventional systems cannot capture.
TACHYON 16k CAMERA
WAAM process monitoring
TACHYON 16k CAMERA
Powder Bed Fusion process monitoring
TACHYON 16k CAMERA
WAAM process monitoring
TACHYON 16k CAMERA
WAAM process monitoring
Share your application with us and we will help you evaluate how it can improve your process.
Our approach to process control
What is not measured cannot be controlled and what is not controlled cannot be improved
TACHYON 16K+ technical specifications

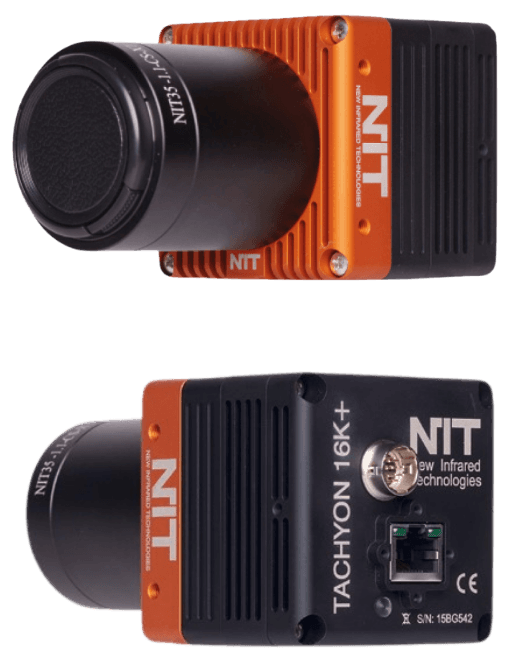

TACHYON 16K+ Dimensions
Key technical specifications for high-speed thermal monitoring
Core technical parameters designed to capture fast thermal events with precision and reliability in demanding industrial environments.
Detector format
- 128 × 128 pixels
Maximum frame rate
- Up to 4000 fps
Spectral range
- MWIR, 1–5 µm
Integration time
- 10–1000 µs selectable
Data output
- RAW data, 14 bit
Interfaces
- GigE / Vision and frame grabber options
Need more technical details?
Download the full datasheet or request information to evaluate how TACHYON 16K+ fits your process.

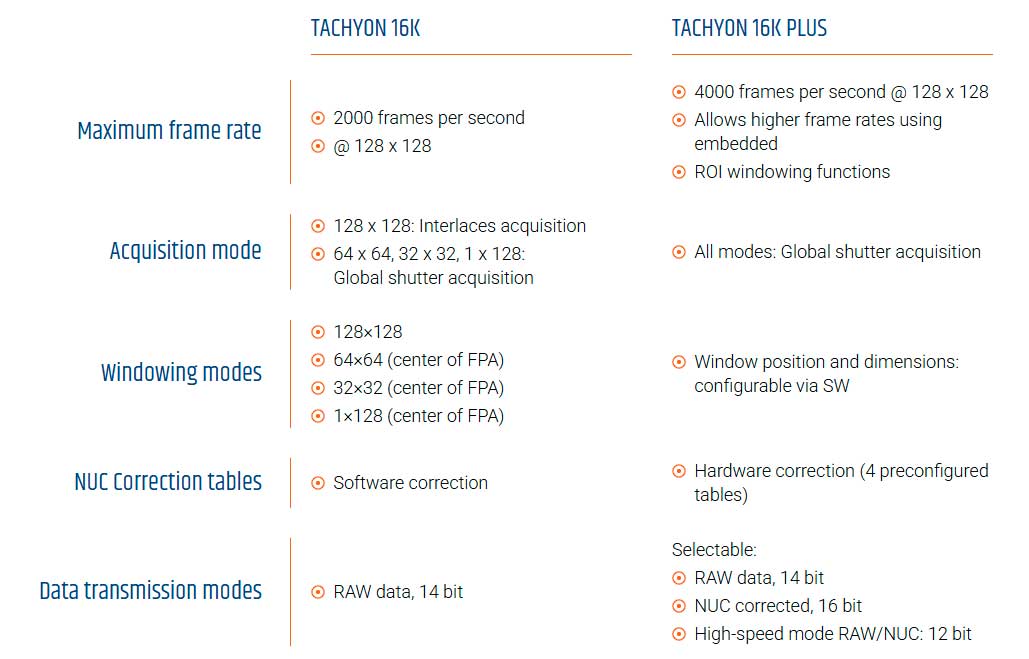

MODEL COMPARISON
Choose the right TACHYON configuration for your application
TACHYON 16K
TACHYON 16K PLUS
Maximum frame rate
- 2000 frames per second
- @ 128 x 128
- 4000 frames per second @ 128 x 128
- Allows higher frame rates using embedded
- ROI windowing functions
Acquisition mode
- 128 x 128: Interlaces acquisition
-
64 x 64, 32 x 32, 1 x 128:
Global shutter acquisition
- All modes: Global shutter acquisition
Windowing modes
- 128×128
- 64×64 (center of FPA)
- 32×32 (center of FPA)
- 1×128 (center of FPA)
- Window position and dimensions: configurable via SW
NUC Correction tables
- Software correction
- Hardware correction (4 preconfigured tables)
Data transmission modes
- RAW data, 14 bit
- Selectable:
- RAW data, 14 bit
- NUC corrected, 16 bit
- High-speed mode RAW/NUC: 12 bit
OUR CUSTOMERS
Companies trusting our infrared camera technology
Our technology is embedded in industrial projects, research centres and strategic developments across multiple sectors.
We work with organisations leading innovation and seeking reliable, precise and efficient infrared solutions.
Request information about TACHYON 16K+
Tell us about your application and we’ll help you evaluate how TACHYON 16K+ fits your process requirements
Share your process details and requirements using the form below. Our team will analyze your use case and recommend the most suitable configuration for your application.
